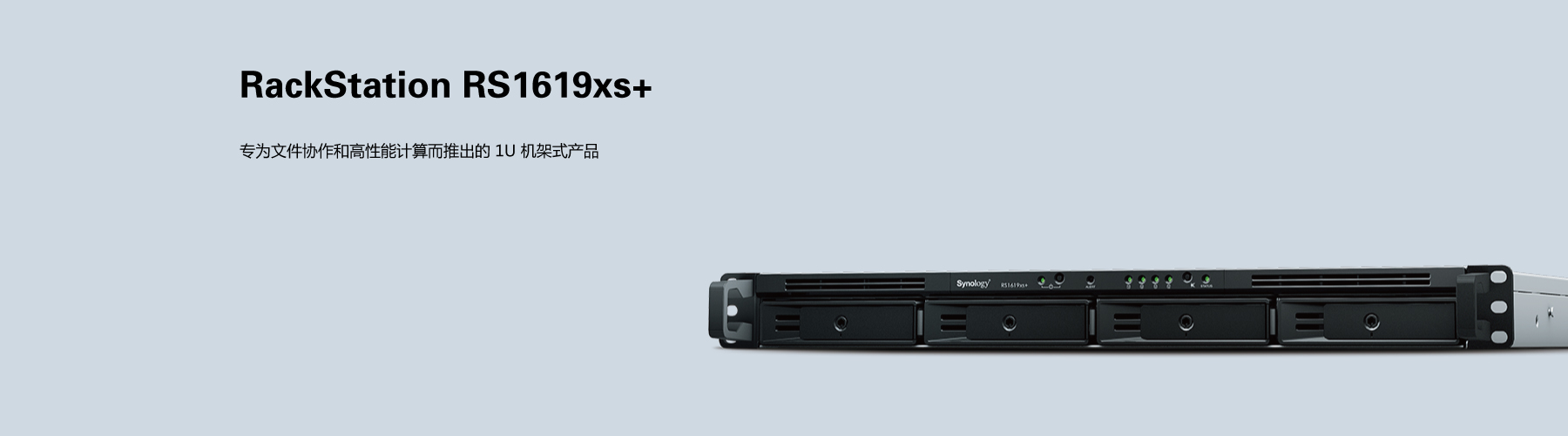

RS1619xs+
The RS1619xs+ is a high-capacity, scalable 1U rackmount NAS with scalable memory and M.2 SSD cache configuration for today's enterprise needs a flexible, reliable and efficient storage solution.

Application Field

The RS1619xs+ is a high-capacity, scalable 1U rackmount NAS with scalable memory and M.2 SSD cache configuration for today's enterprise needs a flexible, reliable and efficient storage solution.

Product Features





Fast storage and excellent computing power


The RS1619xs+ is a high-capacity, expandable 1U rackmount NAS with upgradeable memory and M.2 SSD

The configuration is designed to meet the needs of modern enterprises that require flexible, reliable and efficient storage solutions.



CPU: quad core, up to 2.7GHz

RAM option: 8GB DDR4 UDIMM up to 64GB

High performance: continuous read speeds up to 1,523 MB per second, 162,097 iSCSI random read IOPS

Scalability: can be extended to 16 hard drives with one RX1217/RX1217RP



GuangZhou Tian Ao Information Technology Co., Ltd.




5 year warranty


We are committed to improving product innovation and quality, and Synology guarantees a robust and reliable data tube with a 5-year limited warranty service.

Experience, providing responsive technical support and hardware replacement services to maximize your return on investment.



GuangZhou Tian Ao Information Technology Co., Ltd.





iSCSI and virtualization solutions


Synology iSCSI storage supports most virtualization solutions such as VMware vSphere, Microsoft Hyper-V

Increase productivity with Citrix Xen Server and OpenStack Cinder. Can use Virtual Machine

The Manager runs and manages multiple virtual machines on Windows, Linux, or DSM.




Next-generation file system for better data protection


The Btrfs file system introduces advanced storage technology and optimized snapshot technology to prevent data corruption and reduce

Maintenance costs. While providing high data integrity, it also provides flexible and efficient data protection and recovery tools.



Flexible shared folder/user quota system, providing full quota control for all user accounts and shared folders

Snapshot Replication provides scalable, storage-capable data protection with 1,024 shared folder backups and 65,000 system snapshots.

Ability to recover data quickly and flexibly with file or folder level data recovery

Automatic file self-healing capability detects and recovers damaged files without user intervention



GuangZhou Tian Ao Information Technology Co., Ltd.





Backup solution


The RS1619xs+ combines a variety of backup applications to protect your critical data on all your devices with an intuitive user interface and reliable storage technology.




Digital asset protection


Supported by Synology DiskStation Manager (DSM), Synology NAS provides advanced security measures to prevent sudden data loss and prevent potential security breaches.


Security consultant

Analyze system settings, password strength, and network preferences to remove suspicious malware.


AppArmor

This is a kernel-level enhancement that prevents malicious programs from accessing unauthorized system resources.


AES 256-bit encryption

Encrypts shared folder and network data transfers to prevent unauthorized data access.


2-step verification

This feature prevents others from logging into your DSM by generating a six-digit one-time password (OTP) on your mobile device.


Trust level

Customize trust levels in the suite center to avoid installing packages from untrusted sources to protect your NAS from unknown or tampering suite files.


GuangZhou Tian Ao Information Technology Co., Ltd.



GuangZhou Tian Ao Information Technology Co., Ltd.

GuangZhou Tian Ao Information Technology Co., Ltd.


1
Power Indicator
2
Power button
3
Alert indicator
4
Hard disk status indicator
5
Stop beep button
6
Status Indicator
7
Hard disk tray
8
power supply
9
fan
10
Console
11
1GbE RJ-45 network
12
USB 3.0
13
expansion
14
PCIe expansion slot

Operating System

Snapshot Replication Timed, real-time data protection ensures that shared folders and iSCSI LUNs are still available in the event of a disaster.
More
Synology High Availability When a server fails, it seamlessly transitions between clustered servers to minimize the impact on the application.
More
Safety Built-in comprehensive security tools are constantly updated to protect your device from ever-changing threats.
More
DSM OS UI The DSM operating system has been recognized by the media for an intuitive user interface and great features.
More
Good Integration Easily back up and sync data between your public cloud account and Synology NAS.
More
Virtual Machine Manager Run various operating systems in the isolation sandbox. Seamlessly clone, restore, and migrate virtual machines.
More

Technical Specifications

Product Model RackStation RS1619xs+
CPU Intel Xeon D-1527
CPU Type 处理器架构:64-bit
处理器频率:四核心 2.2 (基准) / 2.7 (睿频) GHz
Hard Disk 磁盘槽数量:4
安装扩充设备之最大磁盘槽数量:16
M.2 硬盘插槽:2 (NVMe & SATA)
RAID RAID F1
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
RAM 8 GB DDR4 ECC UDIMM
RAM Characteristics 预安装内存模块:8 GB (8 GB x 1)
内存 可扩充至:64 GB (16 GB x 4)
Number Of RAM Slots 4
Voltage 100 V 至 240 V AC
Storage Management 256
Storage_device 最大 iSCSI Target 数:256
最大 iSCSI LUN 数:512
File System 内部磁盘:Btrfs/EXT4
外接磁盘:Btrfs/EXT4/EXT3/FAT/NTFS/HFS+/exFAT*
FPS H.264 2250 FPS @ 720p (1280x720)
1050 FPS @ 1080p (1920x1080)
600 FPS @ 3M (2048x1536)
500 FPS @ 5M (2591x1944)
500 FPS @ 4K (3840x2160)
FPS MJPEG 900 FPS @ 720p (1280x720)
450 FPS @ 1080p (1920x1080)
280 FPS @ 3M (2048x1536)
200 FPS @ 5M (2591x1944)
Peripheral Interface RJ-45 1GbE 网络孔:4 (支持 Link Aggregation / 故障移转)
USB 3.0 端口:2
扩充端口:1
Shape Appearance 大小 (高 X 宽 X 深):44 mm x 480 mm x 518.6 mm
重量:8.16 公斤
机架安装支持:四柱式 19 英寸机架
Max Connections 40
Certification FCC
CE
EAC
BSMI
VCCI
CCC
RCM
KC
Surroundings 符合 RoHS 标准
Temperature 工作温度:5°C 至 35°C (40°F 至 95°F)
存储温度:-20°C 至 60°C (-5°F 至 140°F)
相对湿度:5% 至 95% RH
Packaging 主机 X 1
配件包 X 1
电源线 X 2
快速安装指南 X 1
Dimensions 44 mm x 480 mm x 518.6 mm
Weight 8.16 公斤
Warranty 5 年
